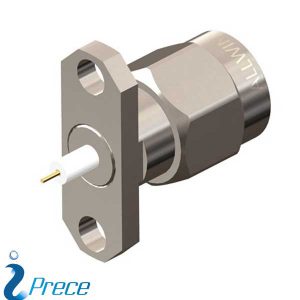

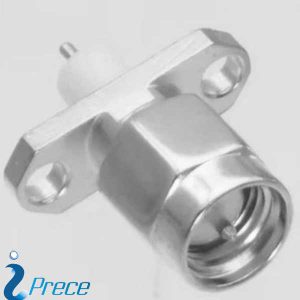

Frequency
- Frequency range: 0~18 GHz
- VSWR: < 1.1
Electrical
- Impedance: 50 ohm
- Voltage Rating: ≧500 V rms (Depending on cable)
- Insulator Resistance : ≧5 GΩ
- Dielectric Withstanding Voltage : 1000 V rms
- Contact Resistance : Center Contact ≦ 3 mΩ.
- Outer Contact ≦ 2 mΩ
Material And Plating
- Housing: SU303F—Polished and Passivated
- Center Contact: Beryllium Copper, Gold Plate
- Insulators: PTFE/PEI
Environmental
- Temperature Range : -65°C to 165°C
- Corrosion (Salt Spray) : MIL-STD-202,
- Method 101, Cond.B
- Thermal Shock : MIL-STD-202, Method 107, Cond.B
- Mechanical : MIL-STD-202, Method 213, Cond.I
- Vibration : MIL-STD-202, Method 204, Cond.D
Notes
- The overall contour may be slightly changed per terminating with
different cable and we reserve right to change it without notice. - Any changes for interface dimensions are strictly prohibited.
- The Material and plating are in various options
per customer’s request. - A complete information for connectors is available upon request.
