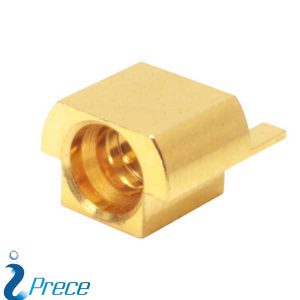

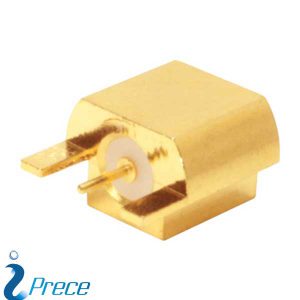

Applications

  • Aerospace
  • Board to Board Interconnect
  • Broadband
  • Instrumentation
  • Mil/Aero
  • Optical Nodes and Routers
  • Telecommunications

Features

  • Designed to accommodate both radial and axial misalignment.
  • Cable connector designs for both flexible and semi-rigid cables.
  • Interface according to MIL-STD-348A/326

Special Notice

  • The specification is listed below for information.  All dimensions are fully compatible with Military requirements.
  • Iprece provides commercial grade connectors, and environmental requirements we can test in-house.
  • For electrical and mechanical test, we can support most of it in-house.
  • If you have any question, please contact our QA Team.

Electrical

Impedance 50Ω
Frequency Range 0 to 40 GHz
VSWR DC to 26.5 GHz →1.15 max
26.5 to 40 GHz →1.35 max
RF Leakage -80dB min. atn3GHz
-65dB min.form 3 to 26.5GHz min.
Dielectric Withstanding Voltage 500 volts rms at sea level
Voltage Rating 170 volts rms max
Inner Contact Resistance ≤6 mΩ
Outer Contact Resistance ≤2 mΩ
Insulation Resistance ≥5 GΩ

Mechanical

Mating Snap-on Coupling
Durability 100 matings min. (Full Detent)
500 matings min. (Limited Detent)
1000 matings min. (Smooth Bore)
Engagement force 15 lbs max. (Full Detent)
10 lbs max. (Limited Detent)
2 lbs max.(Smooth Bore)
Disengagement force 5 lbs min. (Full Detent)
2 lbs min. (Limited Detent)
5 lbs min. (Smooth Bore)

Environmental

Temperature Range -65° C to 165° C
Corrosion (Salt Spray) MIL-STD-202, Method 101, Cond. B
Vibration MIL-STD-202, Method 204, Cond. D
Thermal Shock MIL-STD-202, Method 107, Cond. B
Mechanical Shock MIL-STD-202, Method 213, Cond. D



Material

Parts Name Material Plating
Body Shield: Stainless steel
Male: Beryllium Copper or Brass
Female: Beryllium Copper or Brass
Passivated
Gold
Gold
Inner Contact Beryllium Copper Gold
Insulator PTFE None

Note: Other Material/Finish is Available on Request.
