Custom RF Cable Assemblies
from Prototype to Production
Keep RF paths within loss budgets and routing constraints. For a coaxial cable with connectors matched to your equipment, specify cable type, finished length, and end orientation. Build-to-print manufacturing covers custom RF cable assemblies with low-loss, semi-rigid, and phase-matched options supporting up to 110 GHz. VNA reports document insertion loss and VSWR across the agreed test band. Configure an assembly in the RF cable builder or submit a drawing or BOM for a quote, with MOQs from one unit.

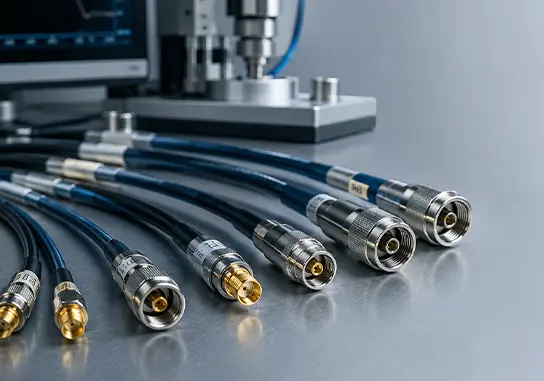

High-Volume RF Cable Assembly
As an RF cable assembly manufacturer, we scale production from 1 to 50,000 units with verified 50 Ω stability and full lot traceability.
- ✓OEMs (Aerospace & Defense integration)
- ✓System integrators (5G & ATE infrastructure)
- ✓Industrial distributors (Global hardware supply chains)
Coaxial Assembly Manufacturing Capabilities
Automated workflows eliminate human error, ensuring exact mechanical tolerances, repeatable VSWR, and strict phase stability.

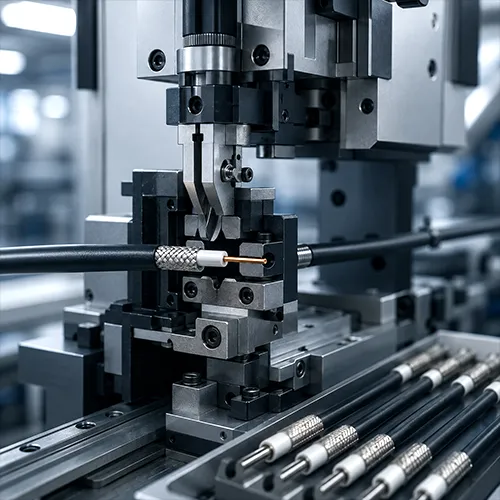

Automated Stripping

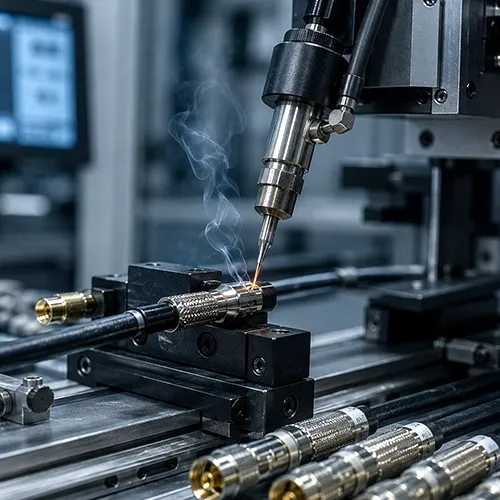

IPC Soldering

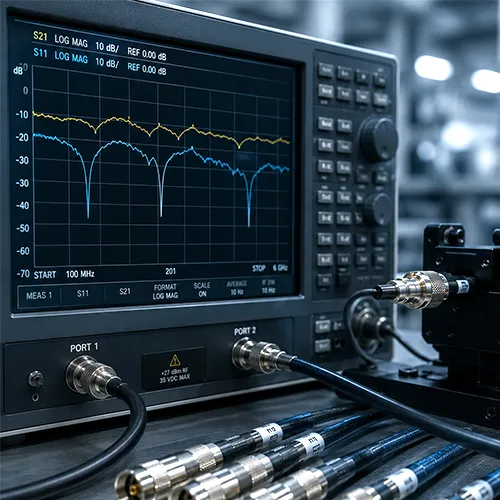

RF Testing

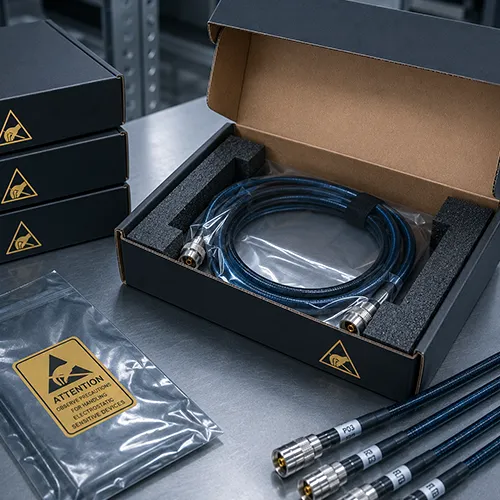

Protected Packaging

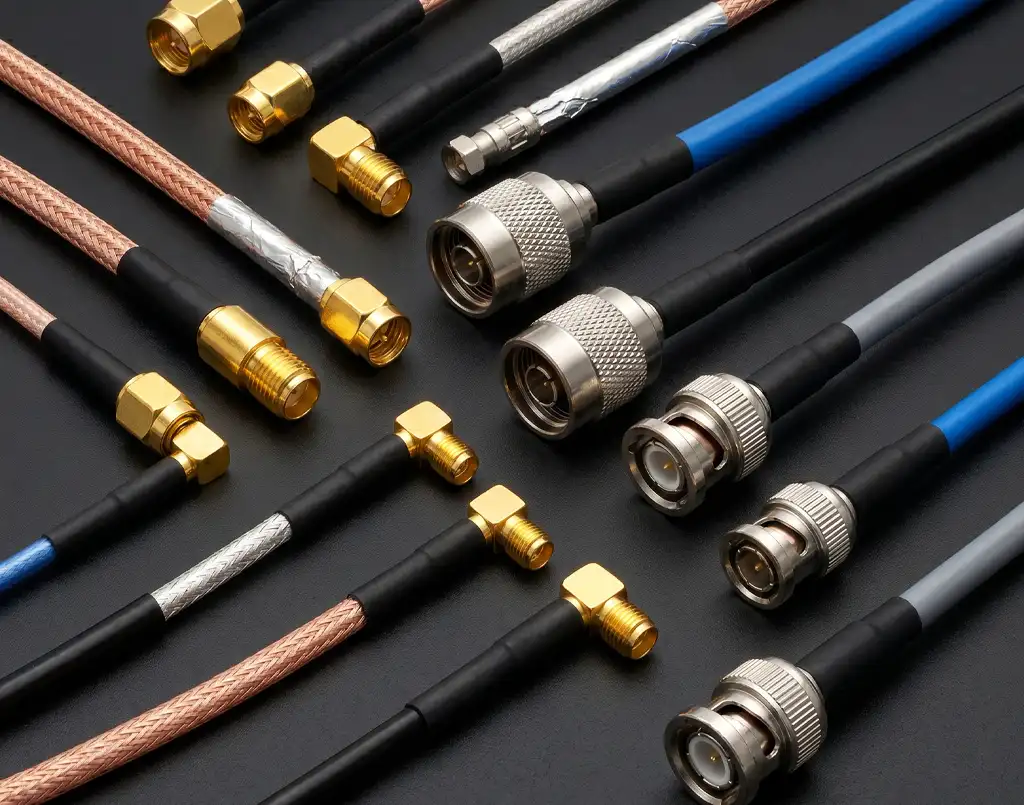

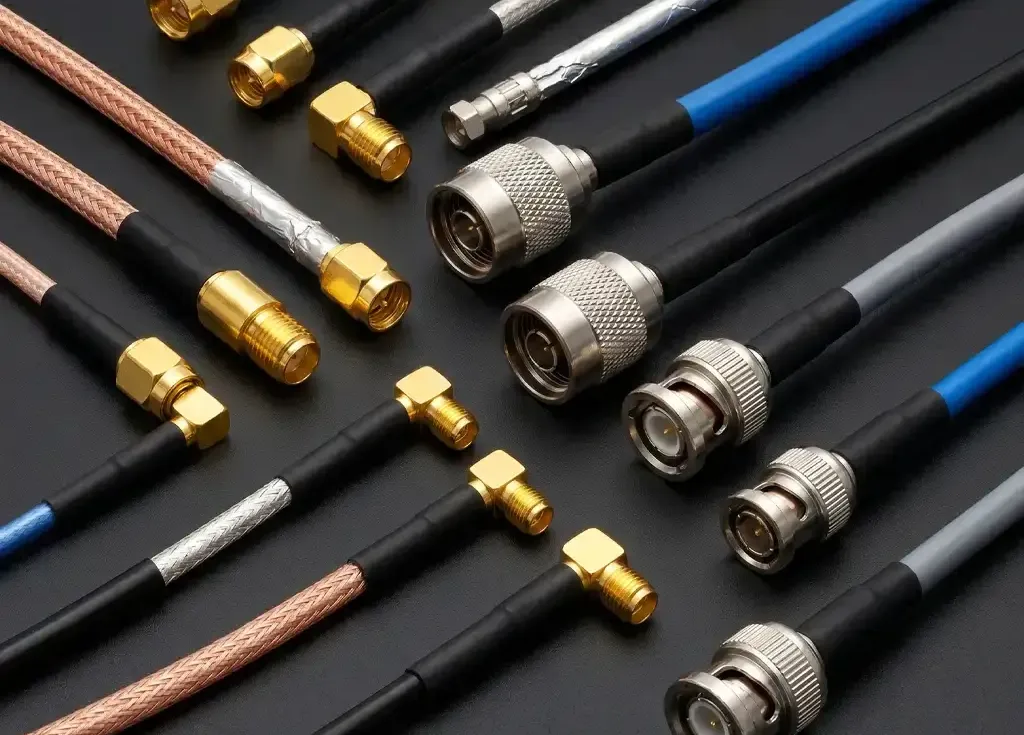

Supported Interconnect Configurations
We build custom RF cable assemblies from a vast component library. Submit drawings for rapid build-to-print manufacturing.
Upload Your BOM / Drawing| Connectors | Precision SMA, N-Type, TNC, BNC, MCX, MMCX, SMP, 2.92 mm, 2.4 mm, 1.85 mm, FAKRA. |
|---|---|
| Coaxial cables | Low-loss LMR series, formable semi-rigid, micro-coaxial, RG precision series, phase-stable test cables |
| Popular assemblies | SMA to SMA coaxialN-Type to SMA Semi-rigid assemblies |
Direct Manufacturer Benefits
Guaranteed repeatability
Automating manufacturing workflows maintains exact physical tolerances across batches. This guarantees unit 1 performs identically to unit 10,000.
Committed lead times
Bypassing third-party delays secures direct manufacturing timelines. Expect rapid 2-3 week fulfillment for complex assemblies.
Blanket Orders
Locking in upfront pricing enables staggered annual shipments. Optimize floor space and manage cash flow efficiently.
RF Cable Assembly Quality Control
Material inspection
MIL-STD-105E audit
Precision stripping
Automated laser prep
Connector assembly
IPC-A-620 certified
VNA verification
100% swept RF
ESD packaging
Full lot traceability
Request Custom RF Cable Assembly Quotes
Submit your custom RF requirements for a verified technical review and formal wholesale pricing within 24 hours.
Coax Assembly Engineering Assurance
We validate every custom RF cable assembly through documented testing workflows.
OEM RF Cable Assembly Partnership
We operate as your direct manufacturing arm. Secure committed volume pricing, priority scheduling, and long-term integration.
- ★ Dedicated engineering support
- ★ Scheduled deliveries & buffer stock
- ★ Private labeling & custom packaging
Proven Coaxial Assembly Outcomes
PIM performance validated across custom low-loss RF assemblies for a 5G infrastructure rollout. Fulfillment executed in 3 weeks.
Flex cycles achieved without electrical degradation in phase-stable oncology harnesses. Tested under continuous dynamic motion.
Maximum VSWR maintained up to 40 GHz for airborne radar installations. Validated via serialized sweeps.
Technical & Procurement FAQs
Ready to Build Your Custom RF Cable Assemblies?
Bypass standard catalog limits and submit your interconnect specifications for a 24-hour engineering review.
Start Your RFQ
