mmWave RF cables: precision signal integrity

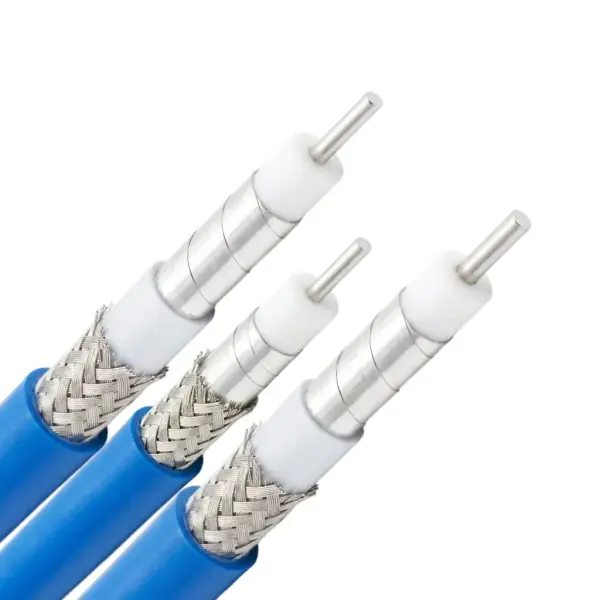

The MMX Series millimeter-wave RF cables utilize a silver-plated copper center conductor and a microporous PTFE dielectric. This structural composition ensures signal integrity across high-frequency bands. The multi-layer shielding architecture, incorporating helical silver-plated copper tape and an outer silver-plated copper braid, achieves a shielding effectiveness exceeding 90 dB. This metric is critical for minimizing electromagnetic interference in sensitive test configurations.
Mechanically, the FEP-jacketed cables support dynamic installation environments with repeated bend radii ranging from 18 mm to 40 mm. They maintain consistent mechanical phase stability under bending stress. Operating reliably in temperature extremes from -55°C to +125°C , the MMX mmWave coaxial cable Series handles peak power levels up to 5 KW, meeting the rigorous demands of advanced mmWave and RF testing applications.
MMX coax cables material specifications
Parameter | MMX-160 | MMX-280 | MMX-400 |
Center Conductor | Silver Plated Copper (0.29 mm) | Silver Plated Copper (0.51 mm) | Silver Plated Copper (0.91 mm) |
Dielectric | Microporus PTFE (0.94 mm) | Microporus PTFE (1.65 mm) | Microporus PTFE (2.98 mm) |
Inner Shield | Helical SPC Tape (1.10 mm) | Helical SPC Tape (1.85 mm) | Helical SPC Tape (3.18 mm) |
Interlayer |
| PTFE (1.90 mm) | PTFE (3.20 mm) |
Outer Braid | Silver Plated Copper Braid (1.30 mm) | Silver Plated Copper Braid (2.21 mm) | Silver Plated Copper Braid (3.55 mm) |
Jacket | FEP (1.60 mm) | FEP (2.70 mm) | FEP (4.00 mm) |
MMX RF cables electrical specifications
Parameter | MMX-160 | MMX-280 | MMX-400 |
Impedance | 50 Ω | 50 Ω | 50 Ω |
Velocity of Propagation (Vp) | 70% | 70% | 70% |
Shield Effectiveness | >90 dB | >90 dB | >90 dB |
Permittivity | 2.04 | 2.04 | 2.04 |
Capacitance | 95.2 pF/m | 95.2 pF/m | 95.2 pF/m |
Delay | 4.76 nS/m | 4.76 nS/m | 4.76 nS/m |
Voltage Withstand (DC) | 400 V | 1000 V | 1500 V |
Peak Power | 0.6 KW | 1.8 KW | 5 KW |
Cut-off Frequency | 105 GHz | 60 GHz | 34 GHz |
MMX series mechanical & environmental specifications
Parameter | MMX-160 | MMX-280 | MMX-400 |
Bend Radius (Installation) | 8 mm | 14 mm | 20 mm |
Bend Radius (Repeated) | 18 mm | 28 mm | 40 mm |
Weight | 7 g/m | 22 g/m | 49 g/m |
Operating Temperature | -55 to +125 °C | -55 to +125 °C | -55 to +125 °C |

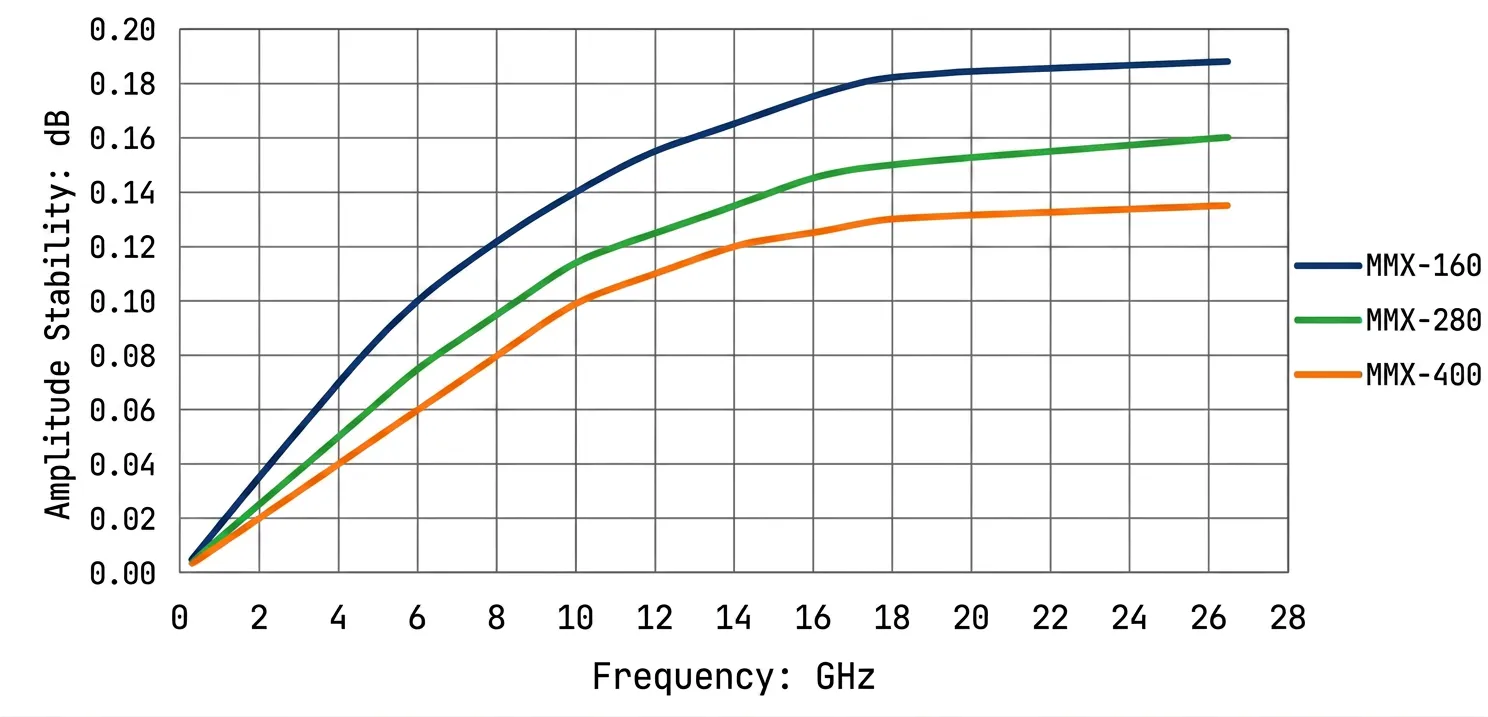

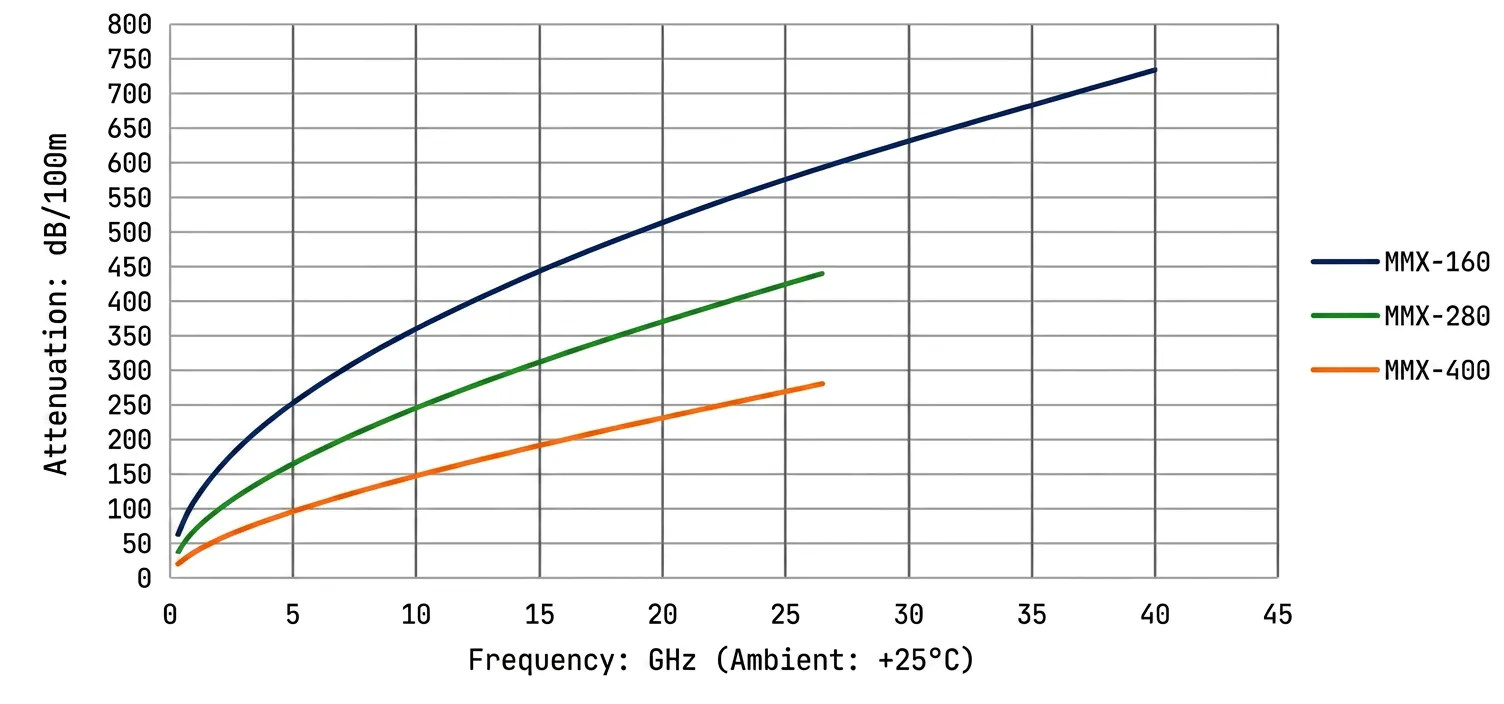

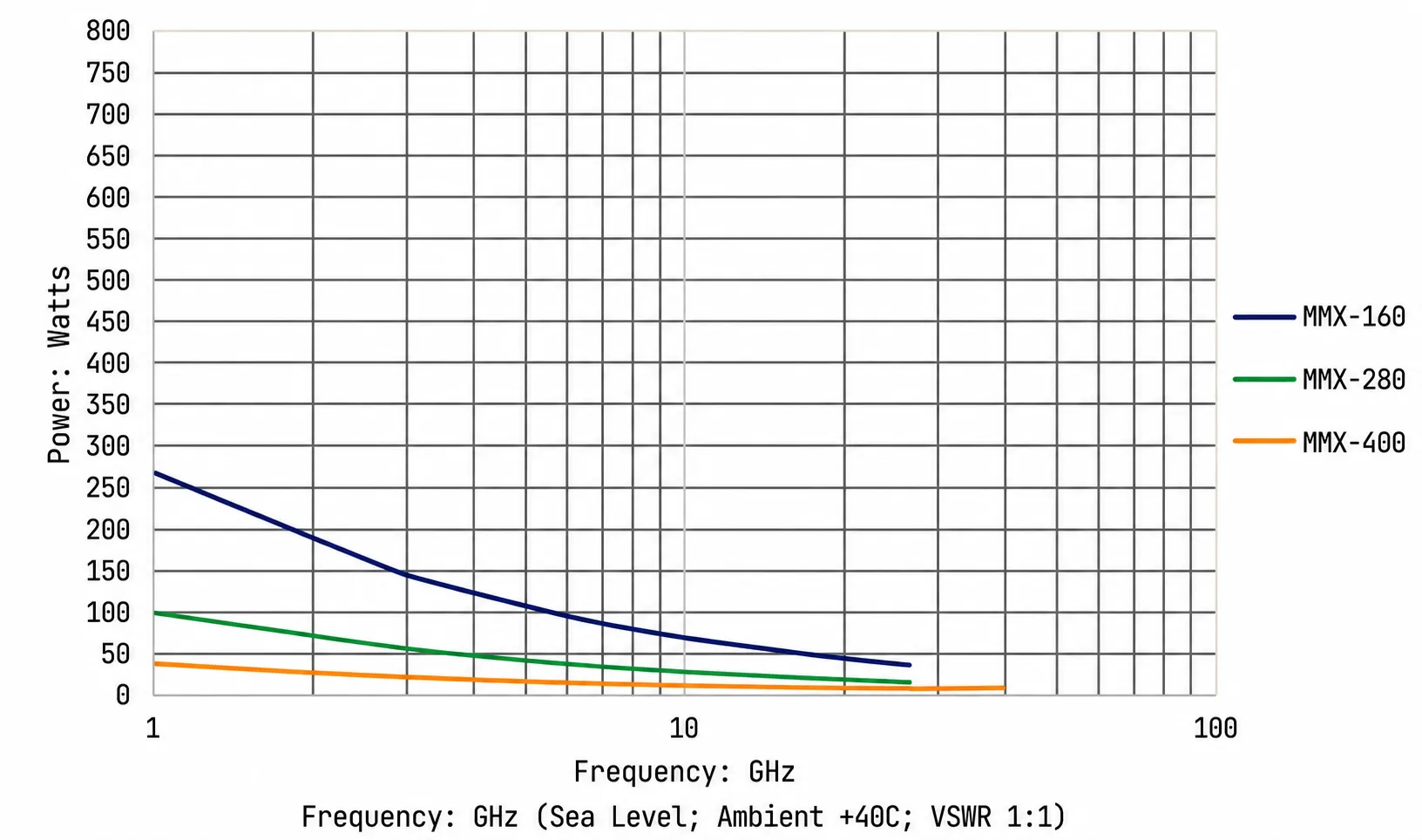

MMX series performance curves
Review the empirical performance charts for MMX series mmWave coaxial cables across frequency and temperature ranges.
