How accurate is return loss testing with a spectrum analyzer?

Accuracy mainly depends on coupler or bridge directivity, connector repeatability, source stability, and analyzer dynamic range. Measurements become increasingly uncertain as the DUT return loss approaches the coupler’s directivity. For reliable results, the coupler directivity should exceed the expected return loss by a practical margin.

Should you use an open or short to normalize a return loss measurement?

Either can establish a full-reflection reference because both ideally reflect all incident power. However, use the standard specified by the analyzer, bridge, or coupler manufacturer. The open or short must be connected at the final DUT reference plane before the measurement path is normalized.

Why does a spectrum analyzer show negative return loss?

A standard normalized trace often displays reflection relative to the 0 dB full-reflection reference. Therefore, a trace reading of −20 dB means the reflected signal is 20 dB below that reference, corresponding to a positive return loss of 20 dB. Dedicated return-loss modes may display the positive value directly.

Can I use an external signal generator instead of a tracking generator?

Yes. An external signal generator can replace a tracking generator if it can sweep across the required frequency range and stay synchronized with the spectrum analyzer. A built-in tracking generator is usually more convenient because its frequency automatically follows the analyzer sweep.

Can you measure antenna return loss with a spectrum analyzer?

Yes. The same tracking-generator and directional-coupler method can be used to evaluate antenna return loss across its operating frequency range. The antenna is connected at the calibrated DUT reference plane, and the resulting trace shows how its impedance match varies with frequency.

What Is Considered a Good Return Loss Measurement?

The required value depends on the DUT and application. As a general reference, 10 dB return loss means 10% of the incident power is reflected, while 20 dB means 1% is reflected. Higher return loss indicates a better impedance match, provided the result remains within the setup’s credible measurement range.

Should I Use a Spectrum Analyzer or a VNA to Measure Return Loss?

A spectrum analyzer with a tracking generator and reflection bridge can measure return loss or VSWR using equipment you already have, provided the setup meets your accuracy requirements. Choose a calibrated VNA when you need higher accuracy, reflection phase, or complex impedance. Its vector calibration corrects errors that single-standard normalization leaves uncorrected.

How to Measure Return Loss With a Spectrum Analyzer

To measure return loss with a spectrum analyzer, you typically need a tracking generator or swept RF source and a directional coupler or return-loss bridge. The source sends RF energy to the device under test (DUT), while the coupler separates the reflected signal and routes it to the analyzer.

Setting up the measurement correctly ensures the analyzer distinguishes the reflected signal from the larger forward signal. A proper setup ensures reduced errors and unwanted reflections. The following section covers the equipment and connections needed for the measurement.

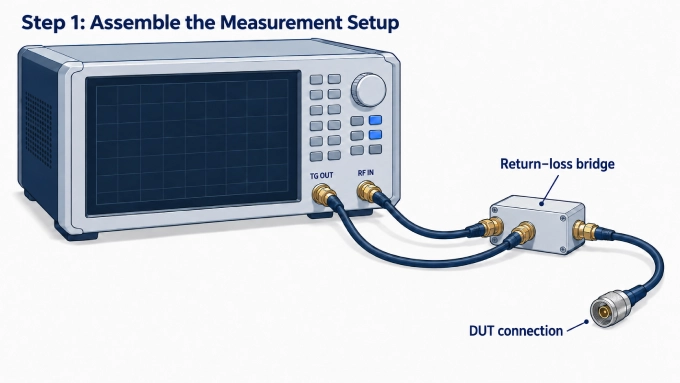

Step 1: Assemble the Measurement Setup

Configure spectrum analyzer and tracking generator

For a basic RF return loss measurement, you typically need:

A spectrum analyzer with a tracking generator.
A return-loss bridge or RF directional coupler: This component separates the signal reflected by the DUT from the forward signal produced by the tracking generator. Its directivity should be comfortably higher than the return loss you expect to measure.
Suitable RF cables and adapters: Short, stable, low-loss connections improve measurement.
An open or short reference standard: An open or short produces nearly total reflection and is used to establish the full-reflection reference during normalization.
Precision matched loads: Use these to check the measurement floor and terminate unused ports when testing a filter, custom RF cable assembly, attenuator, or another multiport device.

Confirm that every component supports the intended frequency range and characteristic impedance of the coxaial cable , normally 50 Ω in RF and microwave systems or 75 Ω in certain broadcast and telecommunications applications.

Arrange the signal path so the tracking generator sends RF energy toward the DUT and the reflected signal reaches the analyzer:

Connect the tracking-generator output to the source port of the return-loss bridge or directional coupler.
Connect any required test cable or adapter to the bridge or coupler’s test port. Leave the DUT-facing connection available for normalization.
Connect the reverse coupled or reflected port to the spectrum analyzer’s RF input.

Follow the manufacturer’s port labels and terminate any unused coupler ports as specified. The analyzer connection must sample the signal traveling back from the DUT toward the tracking generator.

Step 2: Configure the Sweep and Normalize the Measurement Path

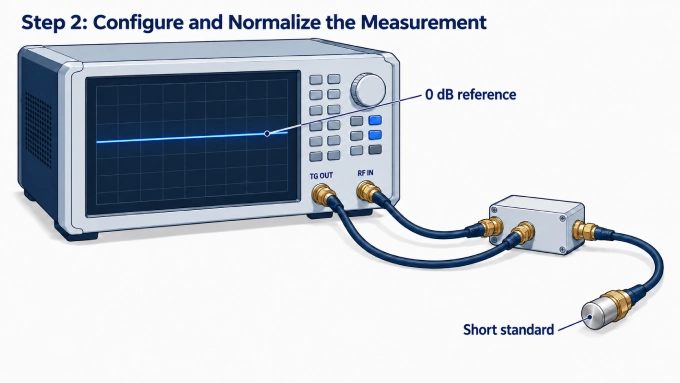

Normalize the Setup With an Open or Short

Configure the analyzer and tracking generator. Set the analyzer’s start and stop frequencies to cover the operating range of the DUT. Enable the tracking generator and select an output level that is high enough to produce a stable reflected signal without exceeding the DUT or analyzer input ratings. If the trace is noisy, use a narrower resolution bandwidth or trace averaging, allowing additional sweep time.
Establish the measurement reference plane. Install all cables and adapters that will remain between the bridge or coupler and the DUT, including any required attenuator. The connector where the DUT will be attached becomes the measurement reference plane.
Connect the open or short reference standard. Attach the specified standard at the DUT reference plane. A short connects the center conductor directly to the outer conductor, providing an approximately 0 Ω termination. If described as a “50 Ω short,” the 50 Ω designation identifies its intended RF system, not its termination resistance. Hold connector bodies stationary while tightening the coupling nut to the specified torque.
Store the reference and enable normalization. Run the analyzer’s normalization function to store this response as the 0 dB reference across the selected frequency range. Here, 0 dB represents nearly total reflection. Keep the test cables, adapters, frequency settings, and tracking-generator level unchanged for the DUT measurement. Repeat normalization if the measurement path or these settings change.

Normalization compensates for much of the frequency-dependent loss introduced by the tracking generator, coupler, cables, adapters, and analyzer response. However, it does not eliminate errors caused by limited coupler directivity, poor port matching, or unstable connections.

If your instrument is operating in VNA mode, follow its specified calibration procedure, typically open–short–load, rather than this single-standard normalization.

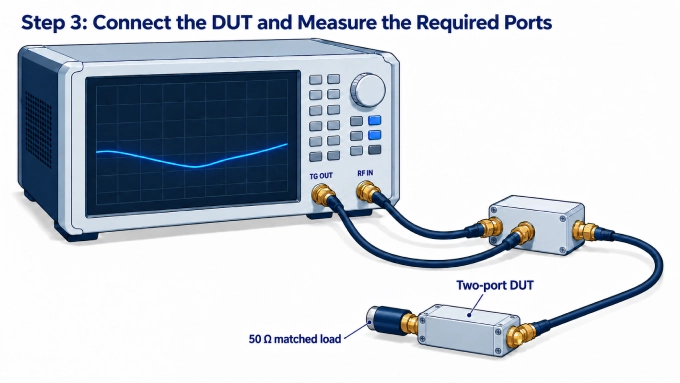

Step 3: Connect the DUT and Measure the Required Ports

Remove the open or short and connect the DUT at the same reference plane. Do not change the test cables, adapters, frequency settings, or tracking-generator level.

Connect and terminate the DUT according to its port configuration:

One-port DUT: Connect its measurement port to the normalized test connection.
Two-port DUT: Measure the selected port with a precision matched load on the other port.
Both port matches required: Save the first measurement, then reverse the DUT connections and move the termination to the previously measured port.
Multiport DUT: Terminate every unused port with a precision load matching the system impedance.

Start the sweep and allow the trace to stabilize. If averaging is enabled, restart it after changing ports and allow the new averages to complete before recording the result. Save or label each trace with the DUT port measured so the results can be compared correctly.

If measuring another port requires different adapters or other changes to the measurement path, repeat normalization at the new DUT reference plane before testing.

This procedure is intended for passive or unpowered devices.

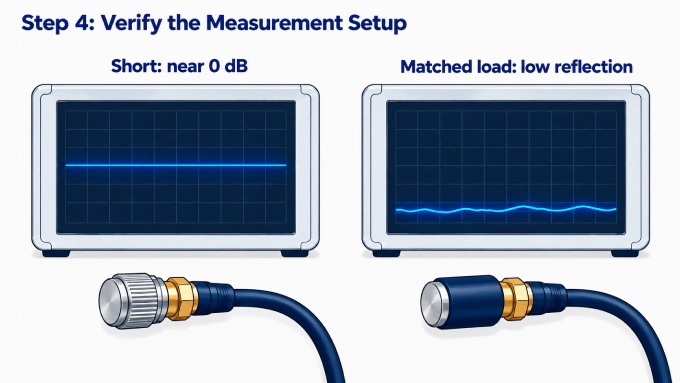

Step 4: Verify the Measurement Setup

Verify the Return Loss Measurement Setup

After measuring the DUT, check the setup at the same reference plane:

Reconnect the reference open or short. The trace should return close to the stored 0 dB reference. A noticeable difference may indicate that a cable moved, a connector mating changed, or the setup drifted during testing.
Connect a precision matched load. Its trace should show substantially less reflection and helps establish the practical measurement floor. An ideal result is unlikely because load imperfections, leakage inside the bridge or coupler, and analyzer noise remain.
Investigate unexpected results. Check the connections and cable positions, correct any problems, and repeat normalization if necessary before accepting the DUT measurement.

These are verification checks of the normalized setup, not an open–short–load calibration sequence.

How to Read the Return Loss Measurement

Return loss indicates how much RF energy is reflected back from the DUT because of impedance mismatch. A higher return loss means less reflected power and a better impedance match, while a lower return loss means more energy is being reflected.

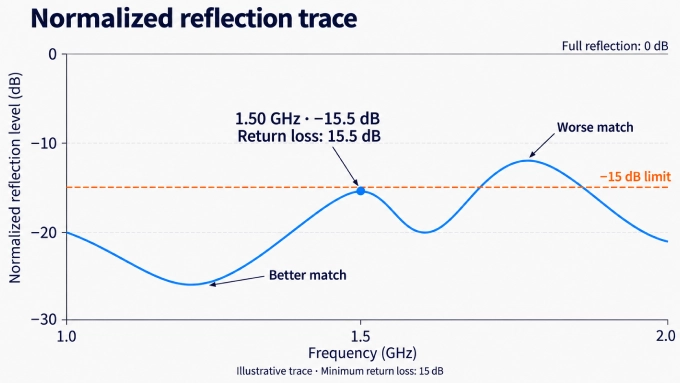

Read the Normalized Reflection Trace

The horizontal axis shows frequency, while the vertical axis shows the reflected signal level in dB relative to the stored full-reflection reference.

A normalized reflection trace may show −15.5 dB, indicating that the reflected signal is 15.5 dB below the full-reflection reference. This corresponds to a positive 15.5 dB return loss. Dedicated return-loss modes may display the positive value directly.

On the normalized trace, more negative values indicate less reflection and better matching. Rises toward 0 dB indicate stronger reflection and worse matching.

When examining the spectrum analyzer trace, do not focus only on a single frequency unless the DUT is intended to operate at one fixed frequency. For broadband devices, the more useful value is usually the lowest return loss across the required operating band, because that point represents the worst impedance match.

Check the full operating band. If a DUT has a return-loss requirement of at least 15 dB from 1 GHz to 2 GHz, the normalized reflection trace must remain at or below −15 dB throughout that range. On a positive return-loss display, it must remain at or above +15 dB. In the illustration, the marker meets the requirement, but the trace exceeds the −15 dB limit elsewhere in the band.
Investigate rises toward 0 dB. These indicate frequencies where reflections increase and may be caused by resonance, poor impedance matching, connectors, cables, or other discontinuities in the RF path.
Treat very high return-loss values cautiously. If they approach the directional coupler’s directivity limit or the analyzer’s noise floor, the measurement setup itself may limit the accuracy of the result.

Convert Return Loss to VSWR and Reflection-Coefficient Magnitude

The reflection coefficient, $\Gamma$ , is the ratio of reflected to incident wave amplitudes at the measurement reference plane. Return loss is calculated from its magnitude:

RL;(\mathrm{dB})=-20\log_{10}|\Gamma|

For a measurement at DUT port 1, with any other DUT ports terminated in the reference impedance, $(|\Gamma|=|S_{11}|)$ . The formula can therefore also be written as:

RL;(\mathrm{dB})=-20\log_{10}|S_{11}|

For a measurement at port 2 of a two-port DUT, the corresponding reflection parameter is $(S_{22})$ .

VSWR and return loss express the degree of impedance mismatch in different forms: VSWR as a ratio and return loss in decibels.Using positive return loss in dB, calculate the reflection-coefficient magnitude and VSWR as follows:

|\Gamma| = 10^{-RL/20}

\mathrm{VSWR} = \frac{1+|\Gamma|}{1-|\Gamma|}

For 15.5 dB return loss, $|\Gamma| \approx 0.168$ , giving a VSWR of approximately 1.4:1.

The corresponding reflected-power levels are:

Return loss	Reflected power
10 dB	10%
20 dB	1%
30 dB	0.1%

Scalar return loss provides the magnitude of the reflection coefficient. Its phase requires a vector measurement.

Return Loss Measurement Errors and How to Avoid Them

Several setup and equipment issues can reduce the accuracy of return loss testing.

Unusually High Return Loss Readings

Very high readings may be limited by coupler or bridge directivity, or the analyzer’s noise floor. Compare the DUT trace with the precision matched-load response and treat results near that floor as uncertain. Use a coupler with directivity comfortably above the expected DUT return loss.

Little Change Between the Reference and DUT

If the trace barely changes when you replace the reference standard with the DUT, check for a backward coupler connection. Follow the manufacturer’s port diagram so the coupled port samples the reflected signal.

Unexpected Changes After Normalization

Changes to cables, adapters, or settings can invalidate the stored reference. If the reference no longer returns close to 0 dB, restore the original configuration or normalize again at the final DUT reference plane.

Noisy Traces

Low signal levels or excessive measurement bandwidth can produce noisy traces. Increase the source level within safe limits, narrow the RBW, or use trace averaging. Normalize again after changing the source level or RBW.

Inconsistent Results After Reconnecting

Dirty, damaged, or inconsistently tightened connectors can reduce measurement repeatability. Clean dirty connectors and replace damaged ones. Tighten threaded connectors to the specified torque, holding the connector body steady and turning the coupling nut.

Results Change With Other DUT Port Connections

Incorrect or missing DUT terminations can affect the reflection measurement. Terminate every unmeasured port with a matched load in the intended system impedance. Ensure the load covers the test frequency range.
